Repair Procedures: Inspection: Replacement

Turn ignition switch OFF.
Disconnect the negative (-) battery cable.
Disconnect the TCM connector (A).

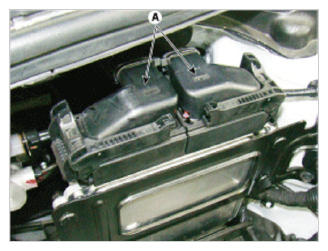

Fig 1: TCM Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the TCM (A) after removing the bolt and nut.
TCM Installation Bolt/Nut:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

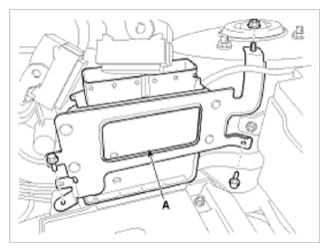

Fig 2: Removing TCM
