Home › Kia › 2015 › Forte LX, Standard Trans › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 1.8L › Battery › Troubleshooting

Charging System - 1.8L: Battery: Troubleshooting

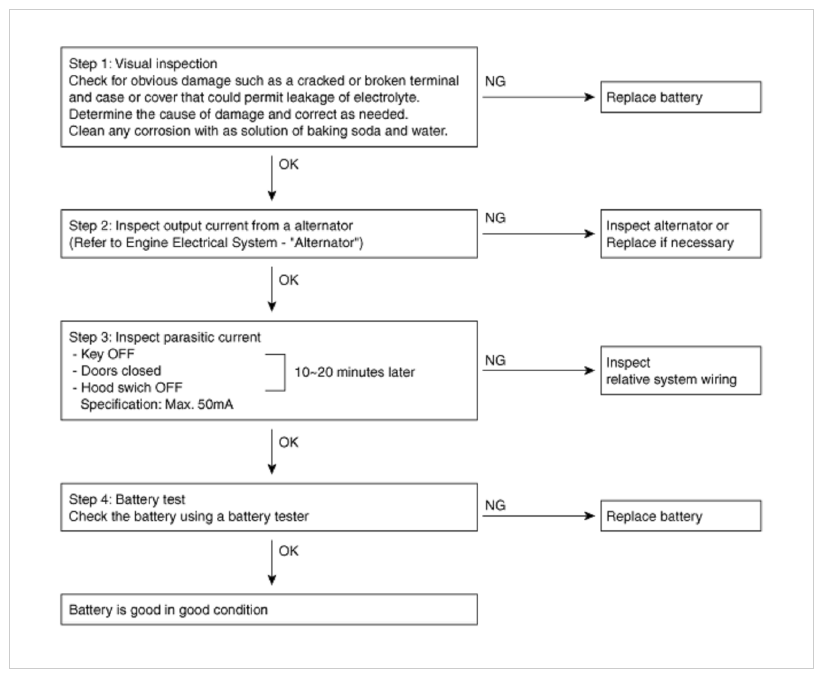

Fig 1: Troubleshooting Chart
G09745542Courtesy of KIA MOTORS AMERICA, INC.
