Exterior Bumper Antenna

Disconnect the negative (-) battery terminal.
Remove the rear bumper cover.
(Refer to "REAR BUMPER COVER ")
Disconnect the connector, then remove the rear bumper antenna (A) with loosening 2 screws.

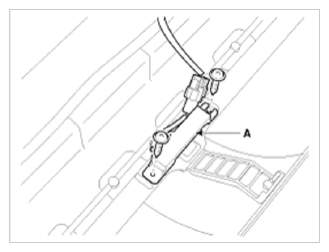

Fig 1: Rear Bumper Antenna
Courtesy of KIA MOTORS AMERICA, INC.
