Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

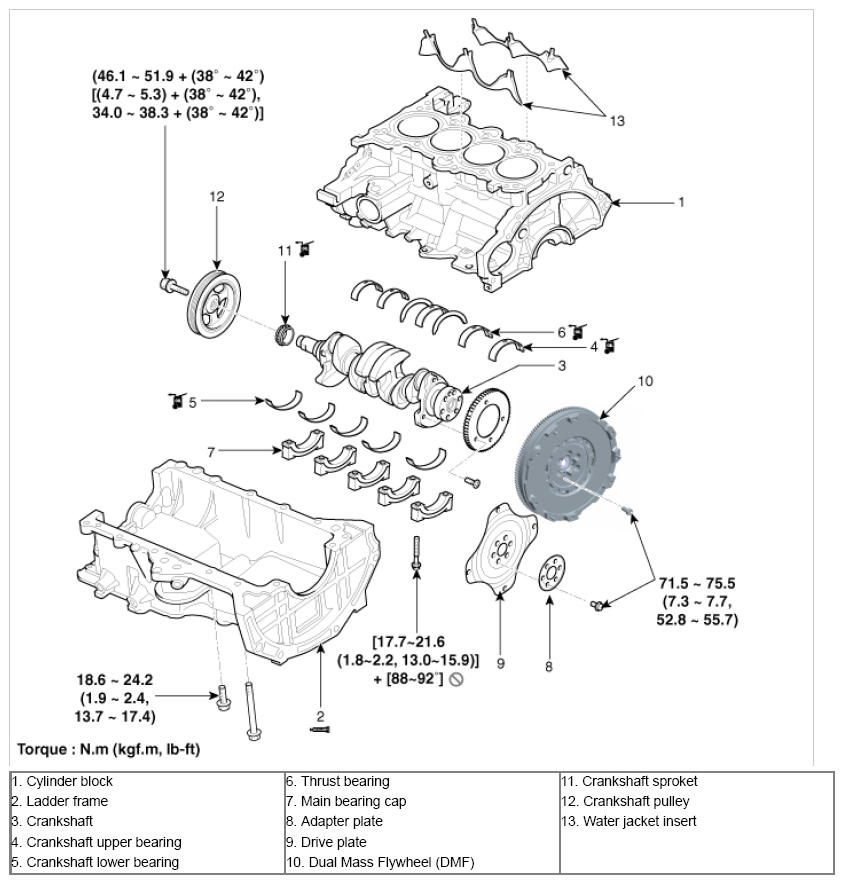

Fig 1: Cylinder Block Components With Torque Specifications
G09746650Courtesy of KIA MOTORS AMERICA, INC.

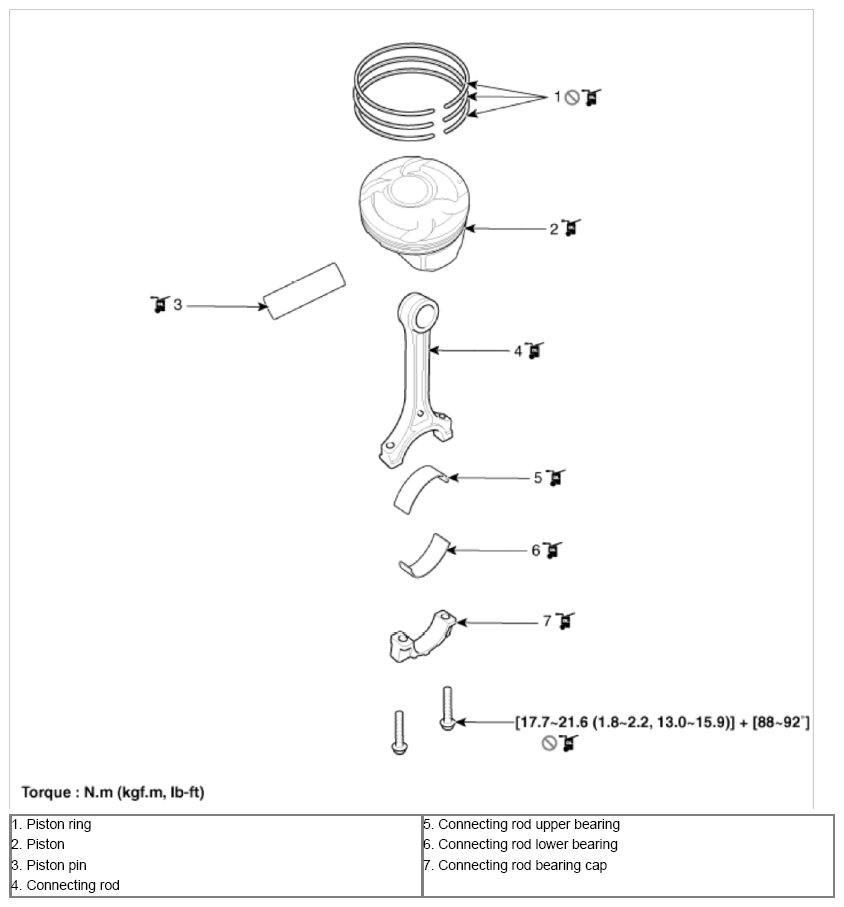

Fig 2: Piston Components With Torque Specifications
G09746651Courtesy of KIA MOTORS AMERICA, INC.
