Repair Procedures: Replacement

Remove the drain plug (A) and drain the Automatic Transaxle Fluid (ATF) totally. Reinstall the drain plug.

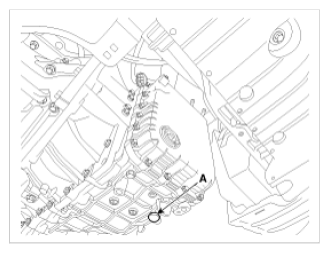

Fig 1: Automatic Transaxle Fluid Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.

Drain Plug Tightening Torque:

34.3 ~ 44.1 N.m (3.5~4.5kgf.m, 25.2~32.4lb.ft)

CAUTION: The gasket of the drain plug use new one.
Fill the oil about 5 liters through eyebolt.
Check the oil level.
(Refer to "FLUID ")
