Repair Procedures: Inspection

Disconnect the IMS control switch connector.

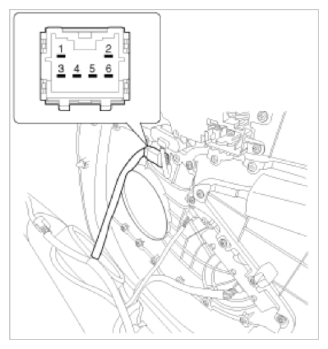

Fig 1: IMS Control Switch Connector View
Courtesy of KIA MOTORS AMERICA, INC.
With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.

Fig 2: Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
