Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to "FRONT DOOR TRIM ")

  3. Remove the IMS module (B) after disconnecting the connector (A).
    Fig 1: IMS Module Connector
    G09744290Courtesy of KIA MOTORS AMERICA, INC.

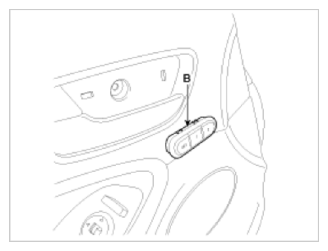

    Fig 2: IMS Module
    G09744291Courtesy of KIA MOTORS AMERICA, INC.
