Repair Procedures: Removal

Disconnect the battery negative terminal.

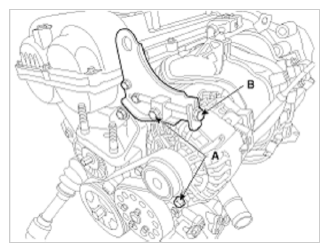

Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.

Fig 1: Alternator Mounting Bolts & Adjusting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

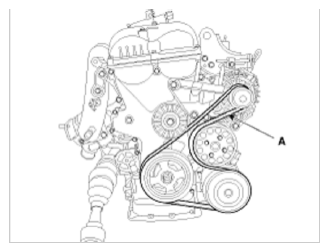

Remove the drive belt (A).

Fig 2: Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

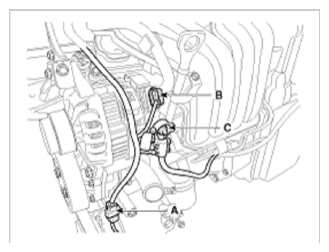

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).

Fig 3: Air Compressor Connector & Alternator Connector
Courtesy of KIA MOTORS AMERICA, INC.

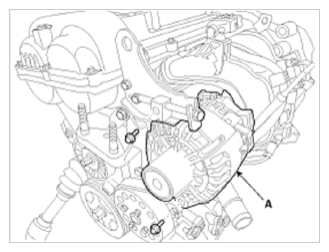

Remove the alternator (A).
