Charging System - 1.6L: Alternator: Specification: Alternator

Item		Specification
Rated voltage		13.5V, 110A
Speed in use		1, 000 ~ 18, 000 rpm
Voltage regulator		IC Regulator built-in type
Regulator Setting Voltage	External mode	Refer to Fig 2
	Internal mode	14.55 ± 0.3V
Temperature Gradient	External mode	0 ± 3 mV/°C
	Internal mode	-3.5 ± 2mV/°C

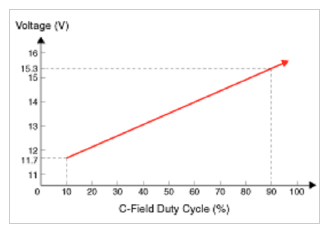

Fig 1: Alternator Voltage Versus C-Field Duty Cycle

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Alternator Output Current Graph

Courtesy of KIA MOTORS AMERICA, INC.
