Starting System: Troubleshooting
NOTE:
The battery must be in good condition and fully charged for this troubleshooting.

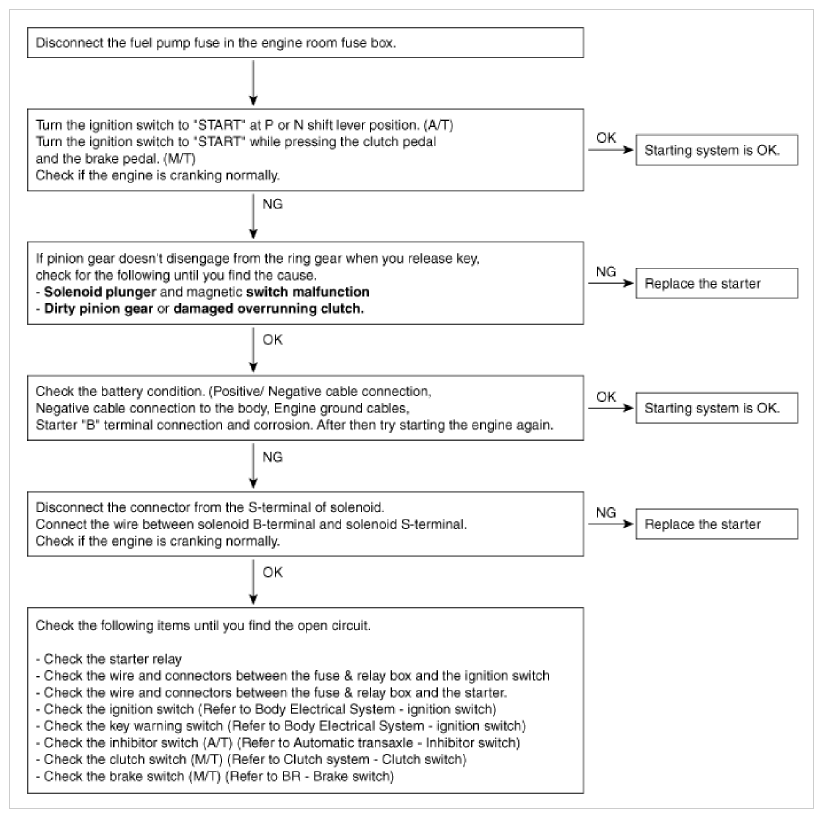

Fig 1: Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
