Hydraulic System - 1.6L
›
Valve Body
›
Components And Components Location
›

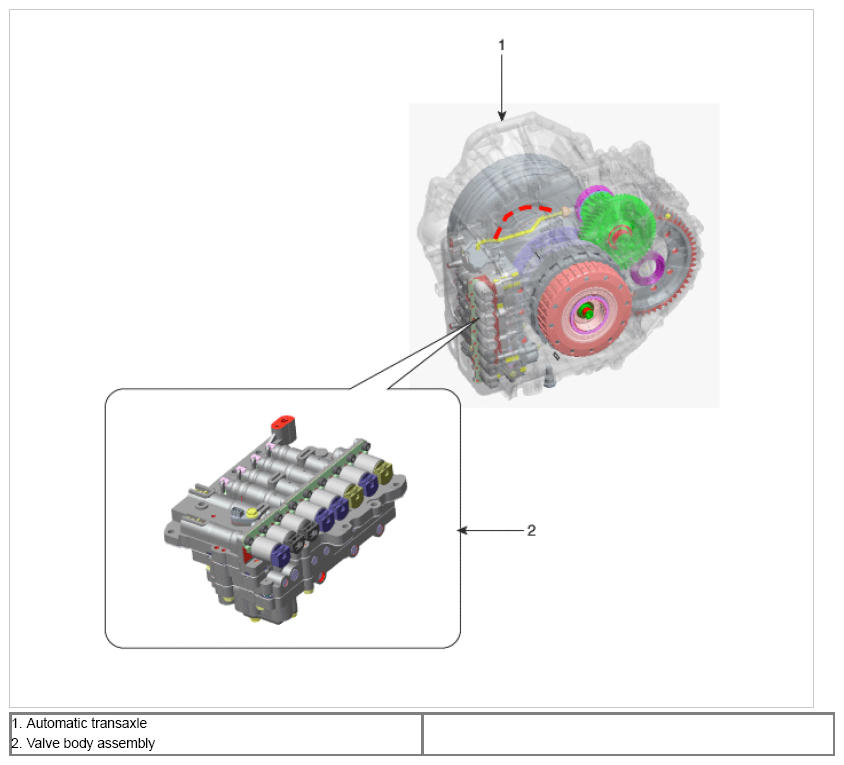

Components Location
Components Location
Fig 1: Valve Body Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

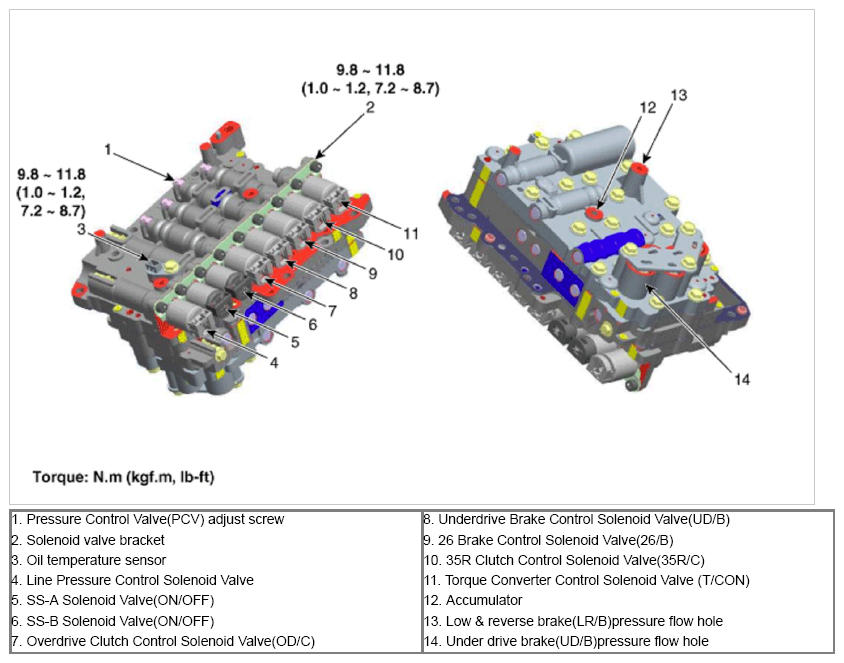

Fig 2: Valve Body Components With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
