Automatic Transaxle Control System - 1.6L
›
Shift Cable
›
Components And Components Location
›
Components
Components And Components Location: Components

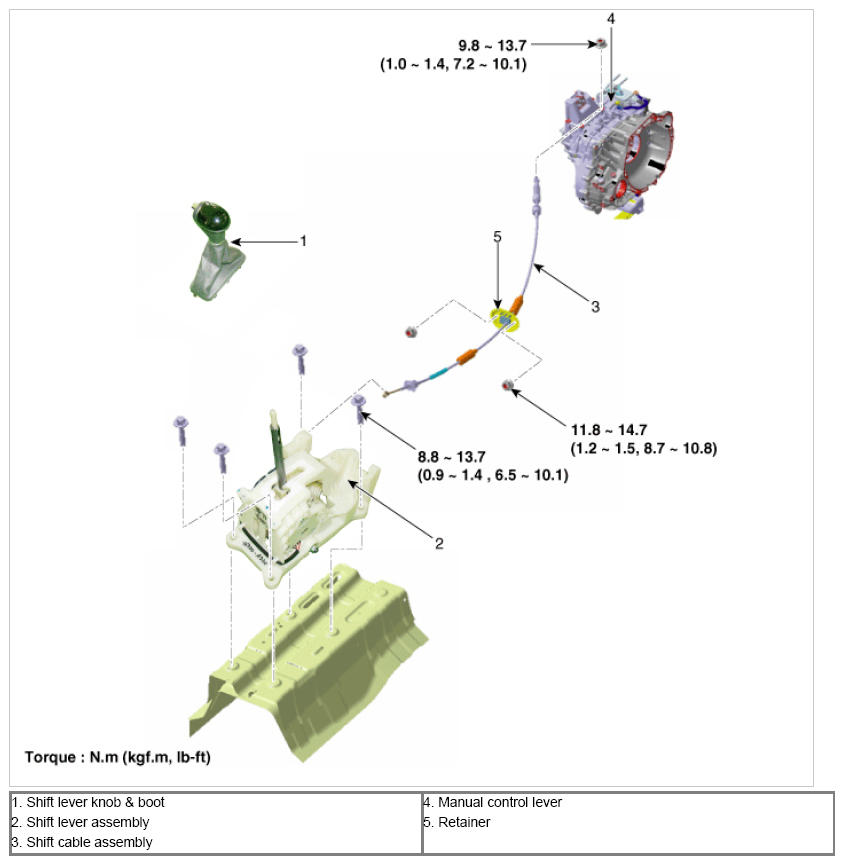

Fig 1: Shift Cable Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
