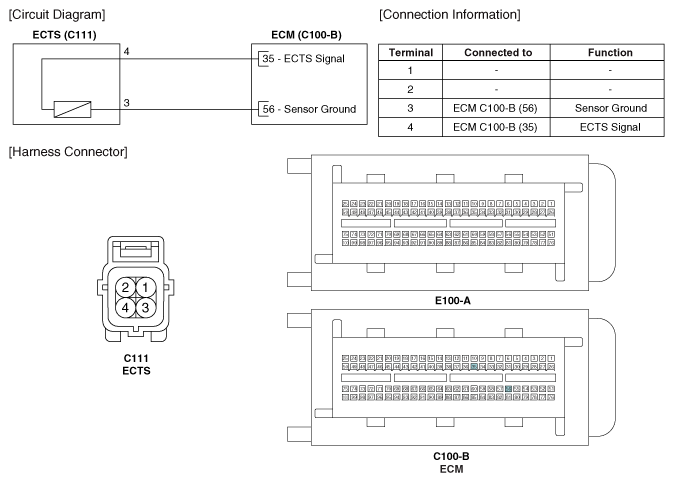

Home › Kia › 2015 › K900 V6 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram
