Knock Sensor (KS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

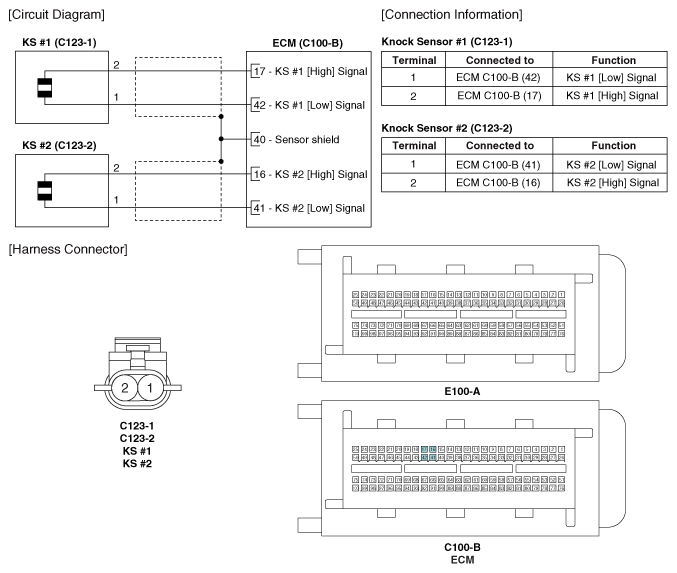

Fig 1: KS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
