Components Location

[Vehicle Components]

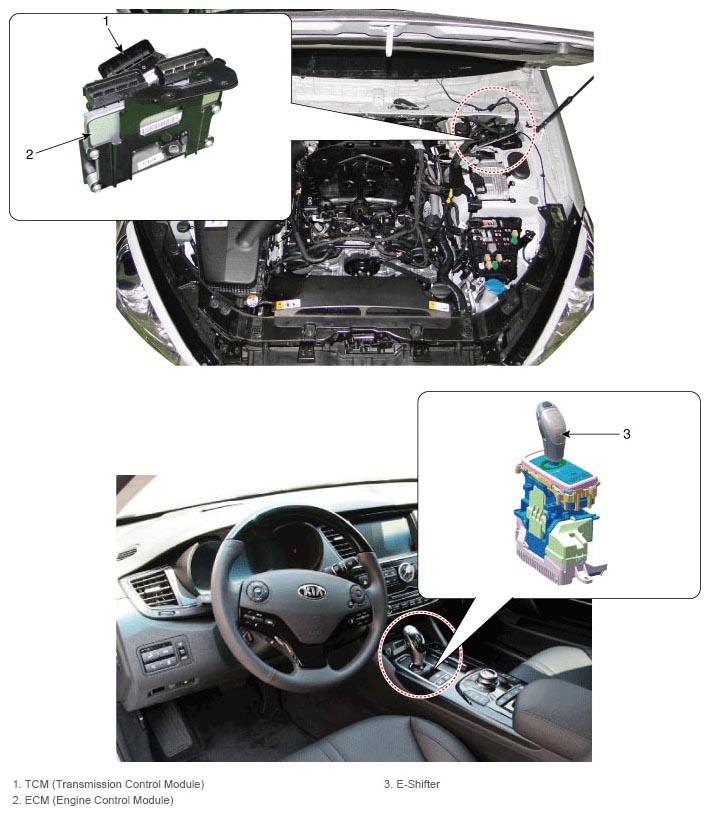

Fig 1: Identifying Automatic Transmission Control System Related Components - Vehicle

Courtesy of KIA MOTORS AMERICA, INC.

[Transmission Components]

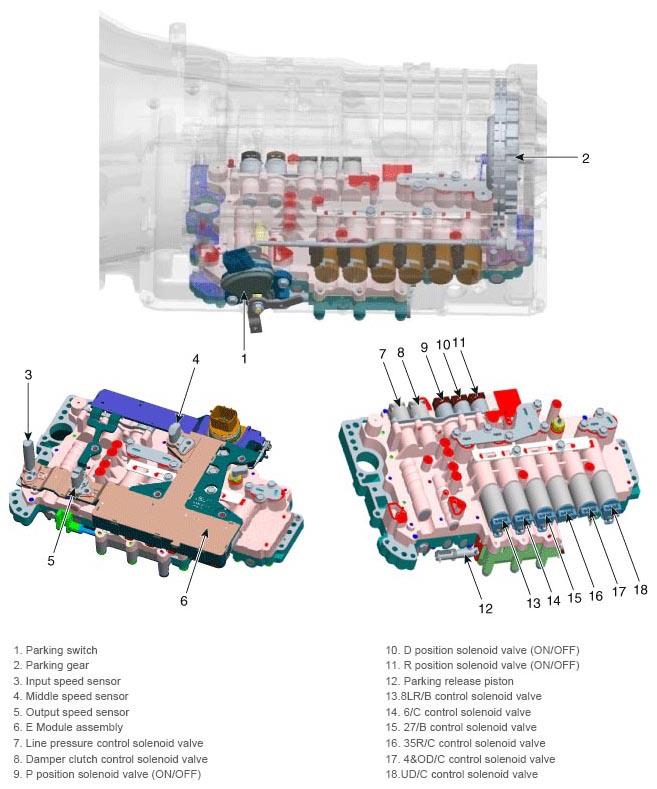

Fig 2: Identifying Automatic Transmission Control System Related Components - Transmission

Courtesy of KIA MOTORS AMERICA, INC.
