Automatic Transmission Control System - Shift By Wire - 3.8L
›
Transmission Control Module (TCM)
›
Components And Components Location
›
Components
Components And Components Location: Components

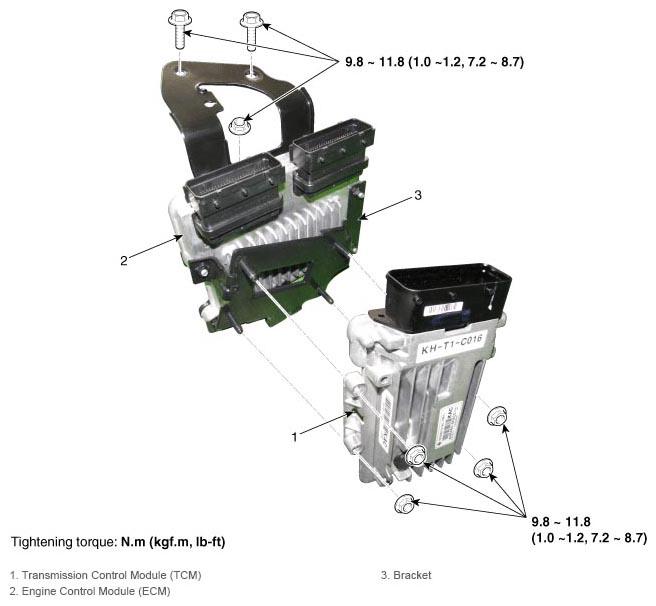

Fig 1: Identifying Transmission Control Module Related Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
