Power Latch Assembly Inspection with GDS

The BCM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the Power Trunk Module system function, select the vehicle model, BCM and PTM system.
Select "Current Data", if you want to check current data of PTM system. It provides input/output status of PTM.

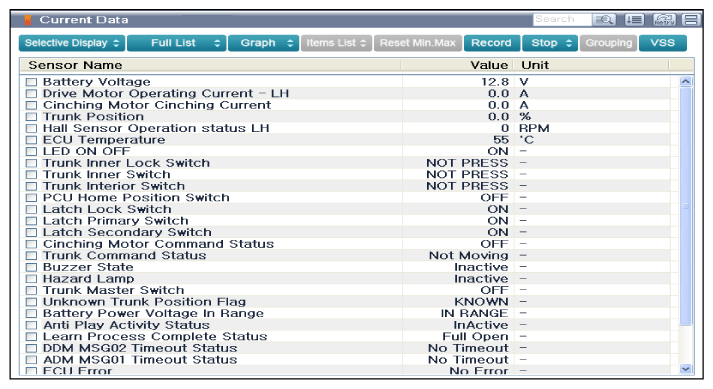

Fig 1: Display - PTM System Current Data Screen
Courtesy of KIA MOTORS AMERICA, INC.
