Repair Procedures: Inspection

Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Check for continuity between terminals (A) of the power trunk switch and replace the switch in case of no continuity.

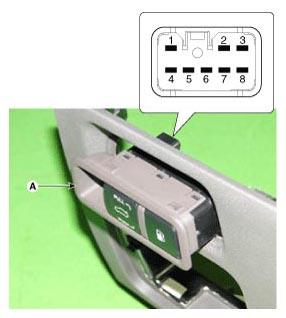

Fig 1: Identifying Power Trunk Switch Terminals
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Power Trunk Switch Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
