Home › Kia › 2015 › K900 V8 › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Components And Components Location › Component

Components And Components Location: Component

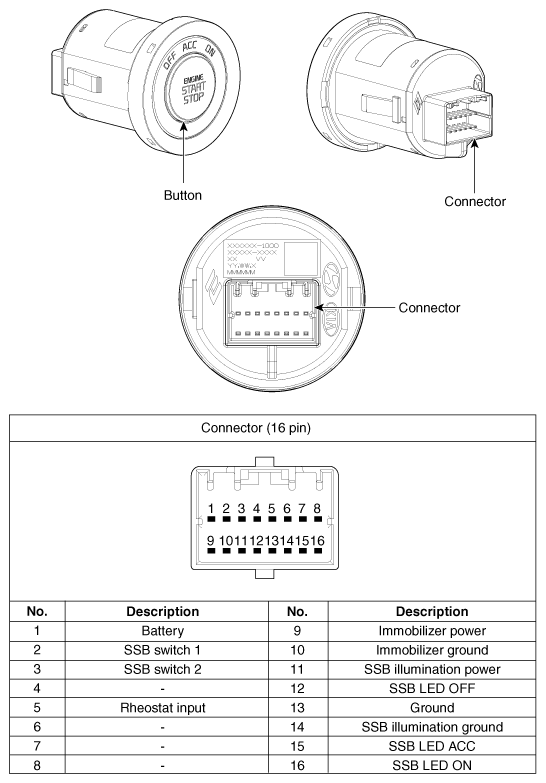

Fig 1: Identifying Start/Stop Button Connector
G10715353Courtesy of KIA MOTORS AMERICA, INC.
