Engine Control System - 5.0L
›
Crankshaft Position Sensor (CKPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

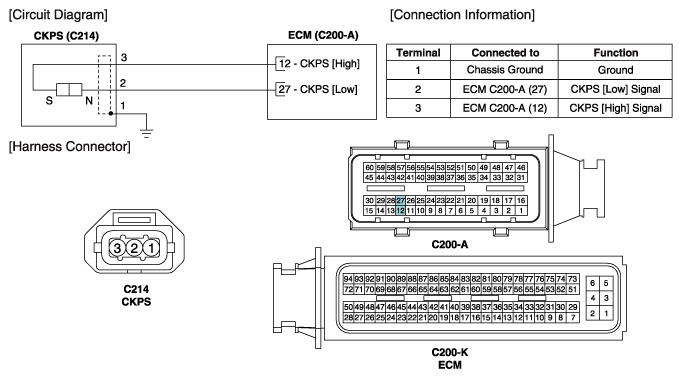

Fig 1: CKPS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
