Injector Drive Box (IDB)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

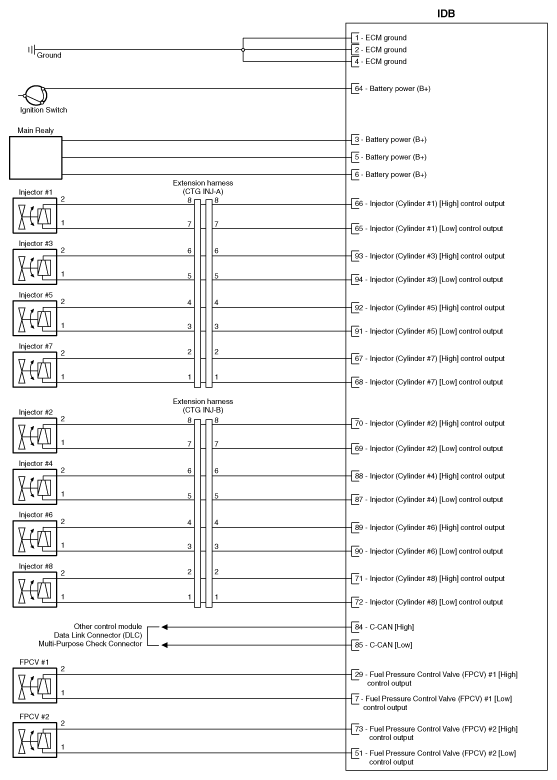

Fig 1: IDB Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: IDB And ECM Communication Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
