Monitor GDS Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "OFF"
  4. Perform "Write VIN" in "Vehicle S/W Management" with GDS.
    CAUTION: Once VIN is programmed, it cannot be changed. Confirm and have VIN in hand before performing "Write VIN".

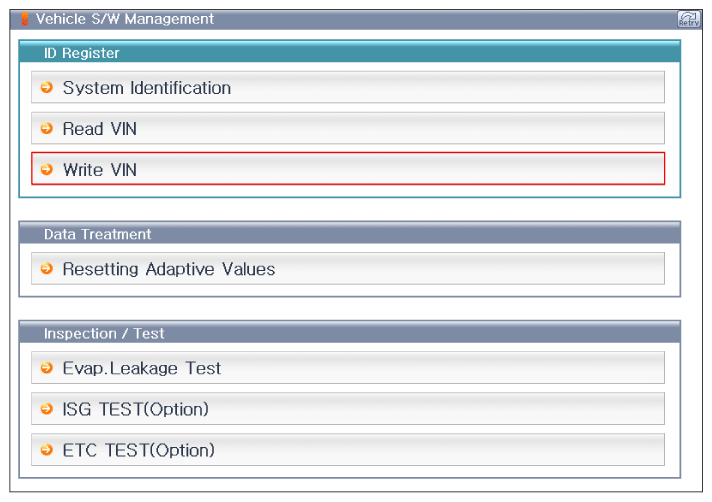

    Fig 1: Screen Display - Write VIN Procedure 1
    G10718977Courtesy of KIA MOTORS AMERICA, INC.

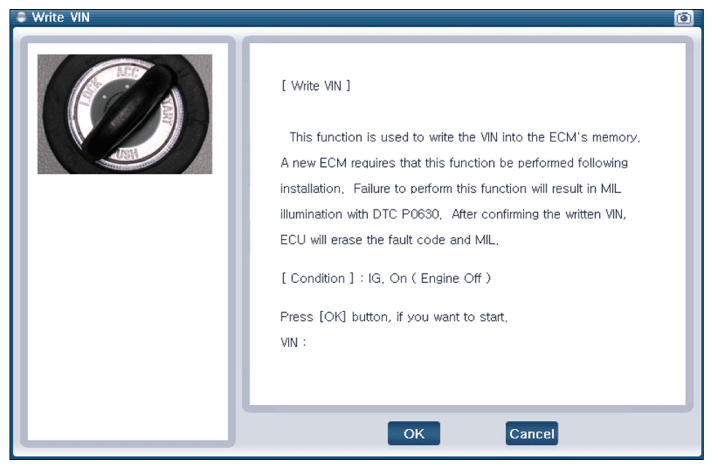

    Fig 2: Screen Display - Write VIN Procedure 2
    G10718978Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Screen Display - Write VIN Procedure 3
    G10718979Courtesy of KIA MOTORS AMERICA, INC.
    WARNING: Confirm VIN again and input correct VIN. VIN CANNOT BE CHANGED ONCE IT IS WRITTEN ON ECM.

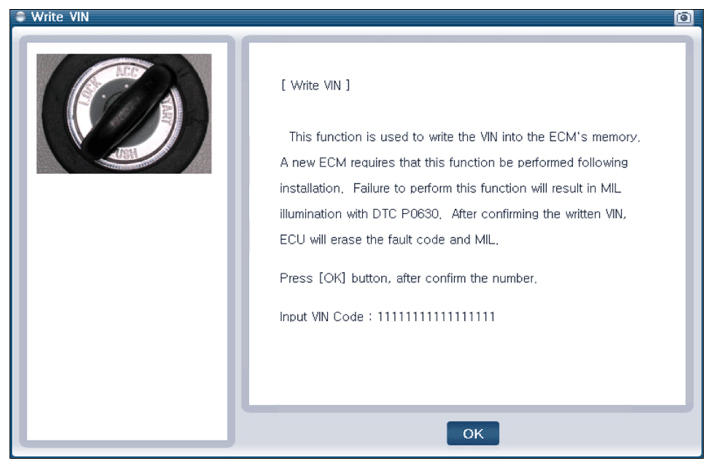

    Fig 4: Screen Display - Write VIN Procedure 4
    G10718980Courtesy of KIA MOTORS AMERICA, INC.

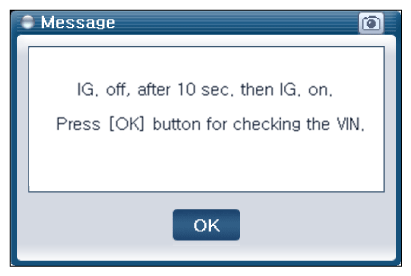

    Fig 5: Screen Display - Write VIN Procedure 5
    G10718981Courtesy of KIA MOTORS AMERICA, INC.
  5. Ignition "OFF" and then "ON"
  6. Check for "Diagnostic Trouble Codes (DTC)" with GDS.
  7. Does P0630 present as Active?

    YES

    • Carefully re-do this troubleshooting guide steps.
    • If the diagnostics have been performed correctly with no failure found, replace the ECM/PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
      CAUTION: When replacing the ECM/PCM, the vehicle equipped with the immobilizer must be performed procedure as below. [In the case of installing used ECM/PCM]
      1. Perform "ECM Neutral mode" procedure with GDS. (Refer to "Immobilizer NEUTRALIZATION STATUS CHECK ")
      2. After finishing "ECM Neutral mode", perform "Key teaching" procedure with GDS. (Refer to "Immobilizer SMART KEY CODE SAVING ")

      [In the case of installing new ECM/PCM]
      Perform "Key teaching" procedure with GDS. (Refer to "Immobilizer SMART KEY CODE SAVING ")
      CAUTION: When replacing the ECM/PCM, the vehicle equipped with the smart key system (Button start) must be performed procedure as below.
      [In the case of installing used ECM/PCM]
      1. Perform "ECM Neutral mode" procedure with GDS. (Refer to "Smart key NEUTRALIZATION STATUS CHECK ")
      2. After finishing "ECM Neutral mode", insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM/PCM learns the smart key information automatically.

      [In the case of installing new ECM/PCM]
      Insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM/PCM learns the smart key information automatically.

    NO
