Component Location

WARNING: This page is about a different car, the 2015 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

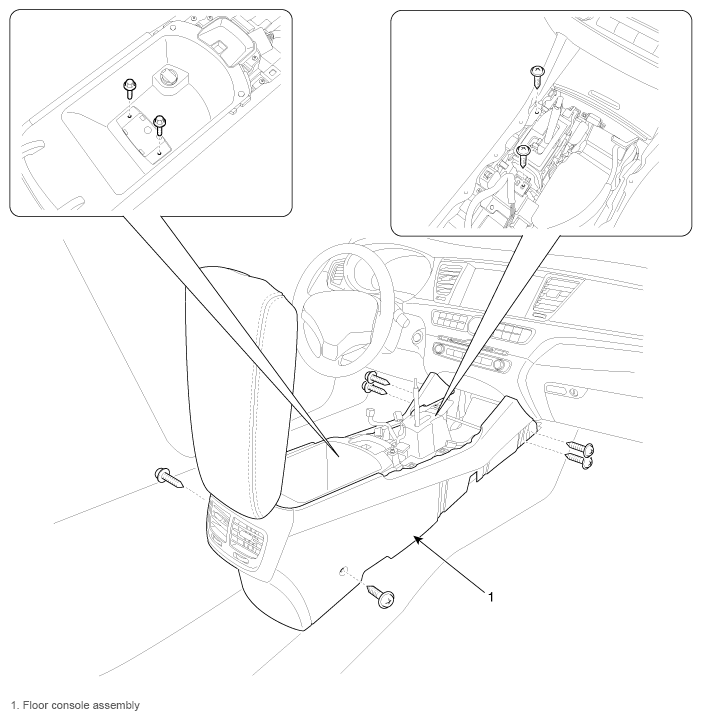

Fig 1: Identifying Floor Console Assembly

Courtesy of KIA MOTORS AMERICA, INC.
