Antenna Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

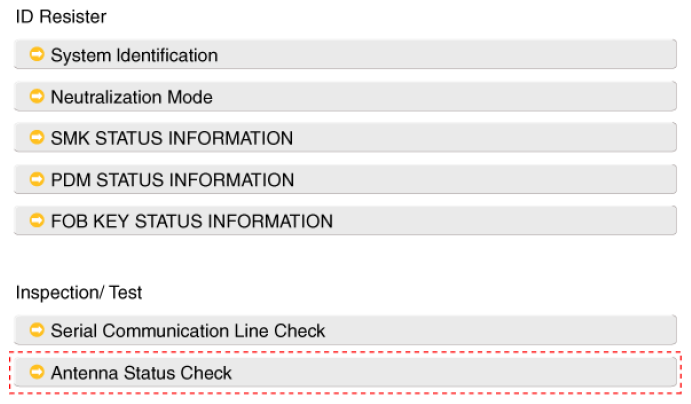

Fig 1: Display - ID Resister And Inspection/Test
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

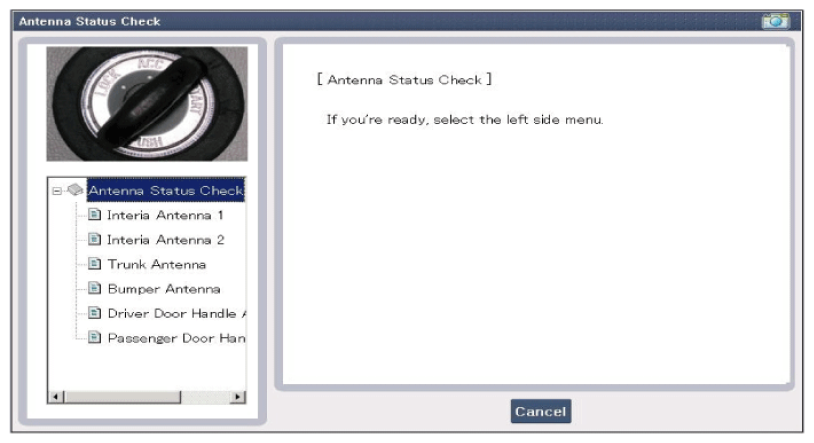

Fig 2: Display - Antenna Status Check Screen
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a GDS.

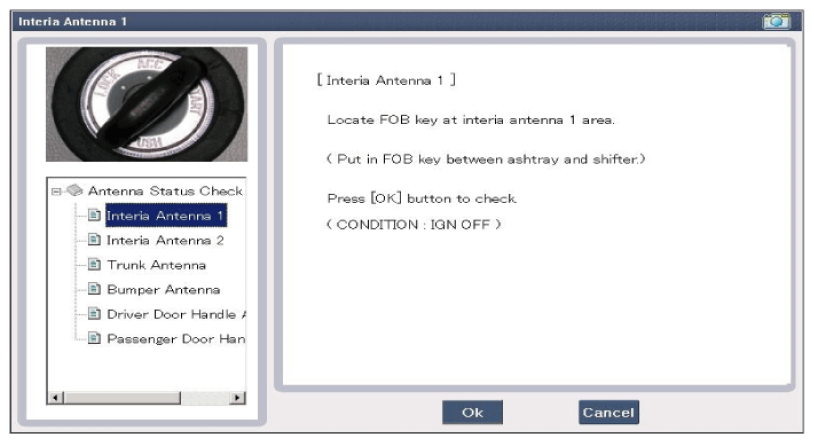

Fig 3: Display - Internal Antenna 1 Screen
Courtesy of KIA MOTORS AMERICA, INC.

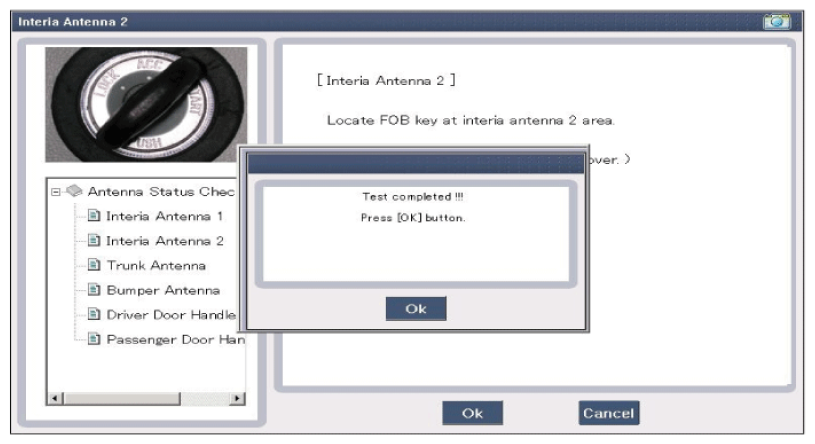

Fig 4: Display - Completed Message Of Internal Antenna 2 Screen
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- Trunk antenna
- BUMPER/Antenna
- DRV_DR Antenna
- AST_DR Antenna
