FOB Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "FOB KEY STATUS INFO".

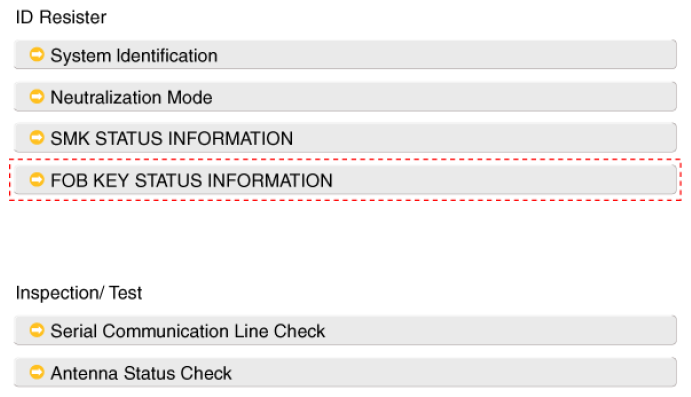

Fig 1: Display - FOB Key Status Information
Courtesy of KIA MOTORS AMERICA, INC.

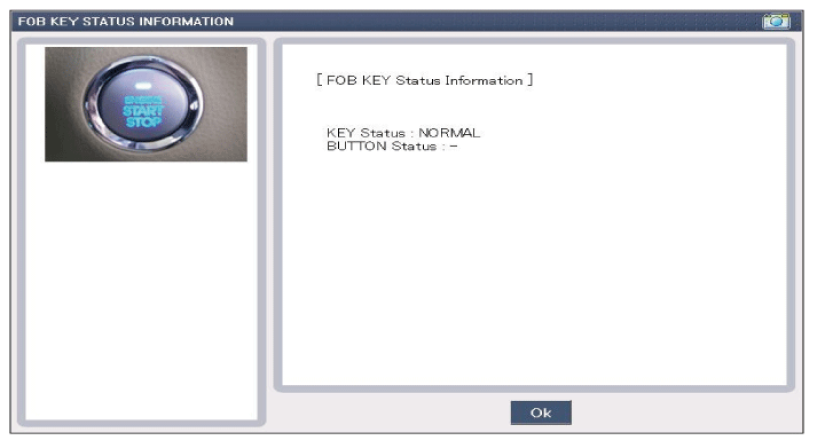

Fig 2: Display - FOB Key Status Information Screen
Courtesy of KIA MOTORS AMERICA, INC.
