Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

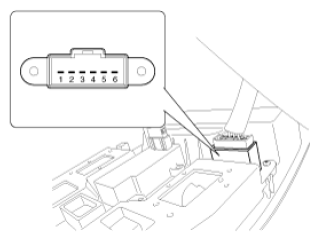

Fig 1: Identifying Map Lamp Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Map Lamp Switch Continuity Reference Chart

Courtesy of KIA MOTORS AMERICA, INC.
