Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Loosen 2 screws holding the overhead console (A).

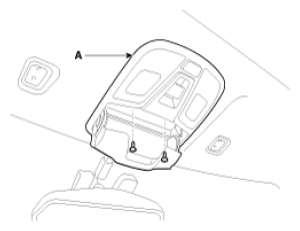

Fig 1: Identifying Overhead Console And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors of sunroof switch (A) and lamp switch (B) then remove the overhead console lamp assembly.

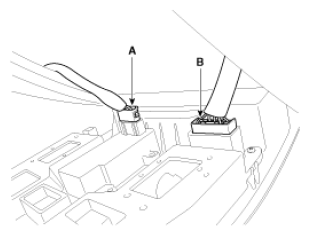

Fig 2: Identifying Sunroof Switch And Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
If necessary to replace the bulb, replace the bulb (C) after disconnecting the connectors.

Fig 3: Identifying Bulbs
Courtesy of KIA MOTORS AMERICA, INC.
