Engine Control System - Optima HEV
›
ETC (Electronic Throttle Control) System
›
Schematic Diagram
›
Circuit Diagram
Circuit Diagram

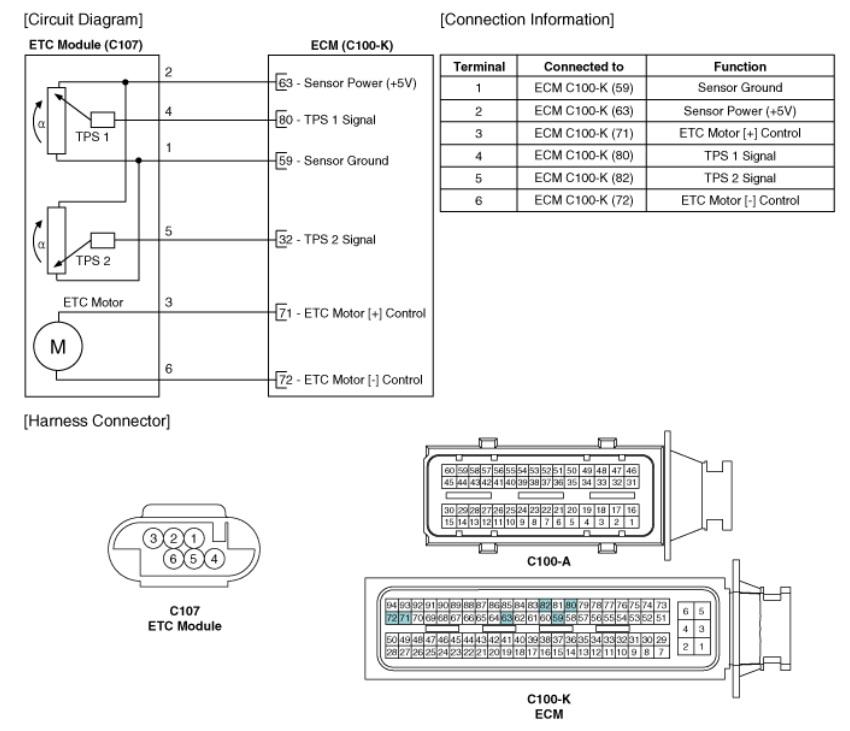

Fig 1: ETC Module & ECM Circuit Diagram With Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
