Engine Control System - Optima HEV
›
Accelerator Position Sensor (APS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

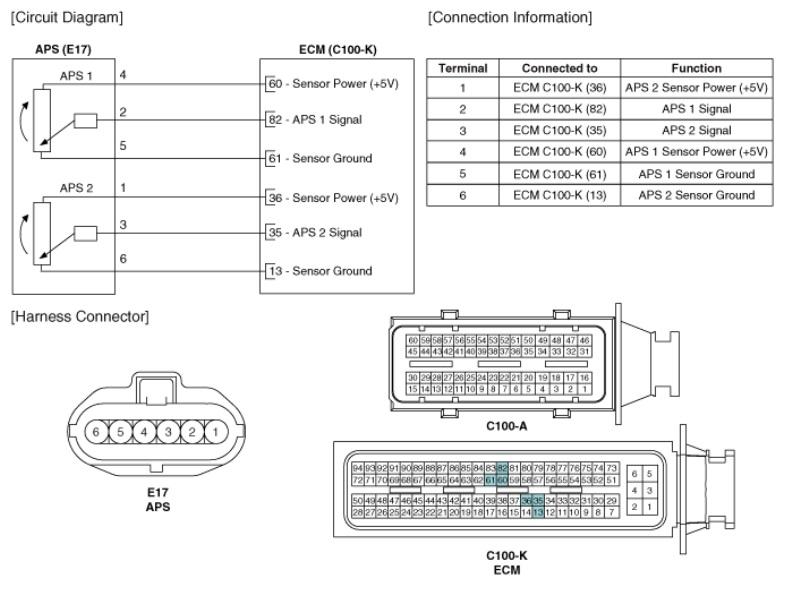

Fig 1: APS Circuit Diagram With Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
