Crankshaft Position Sensor (CKPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

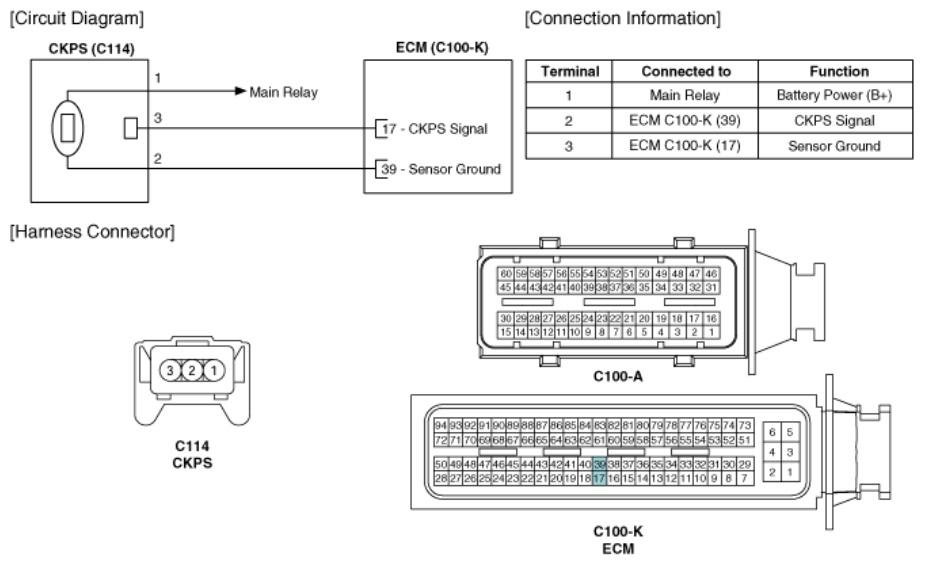

Fig 1: CKPS Circuit Diagram With Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
