Engine Control System - Optima HEV
›
Engine Coolant Temperature Sensor (ECTS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

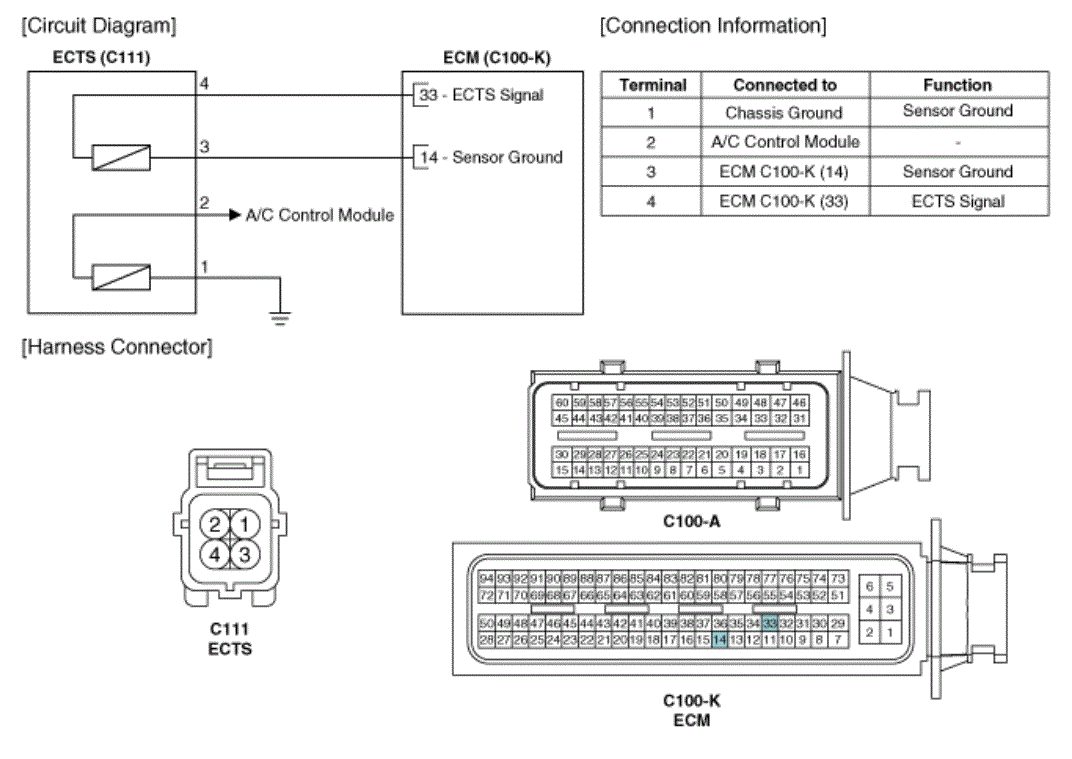

Fig 1: ECTS Circuit Diagram With Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
