Engine Control System - Optima HEV
›
Injector
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

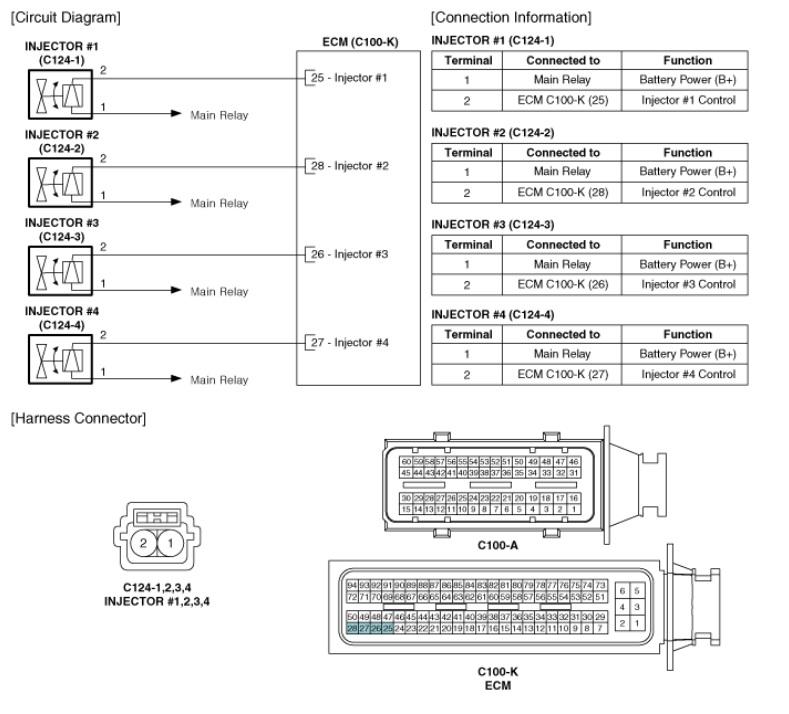

Fig 1: Injector Circuit Diagram With Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
