Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the NVLD connector (A).
  3. Disconnect the ventilation hoses (B, C).

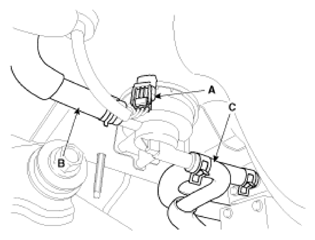

    Fig 1: NVLD Connector & Ventilation Hoses
    G08312889Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the NVLD after by loosening the bolts (A).
    Fig 2: NVLD Mounting Bolts
    G08312890Courtesy of KIA MOTORS AMERICA, INC.
