Engine Control System - Optima HEV
›
Purge Control Solenoid Valve (PCSV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

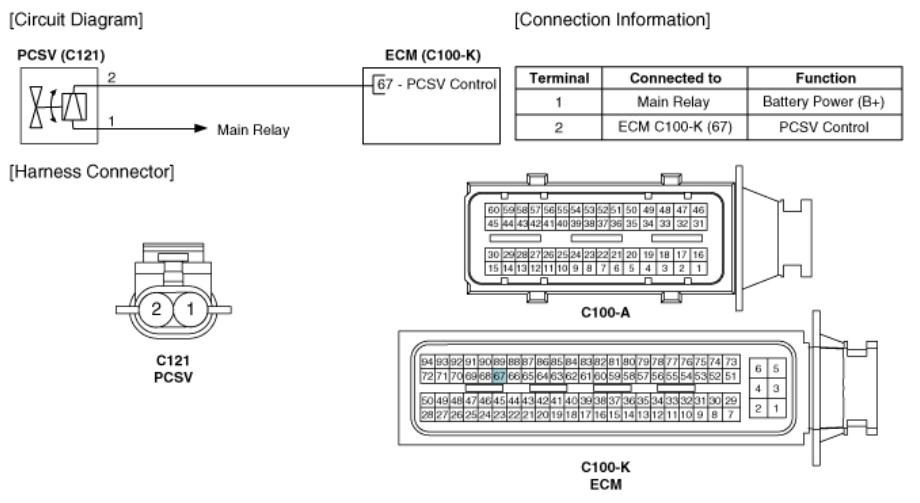

Fig 1: PCSV Circuit Diagram With Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
