Repair Procedures: Removal

Remove the fuel tank (Refer to Fuel Tank )
Disconnect the fuel feed tube (A).

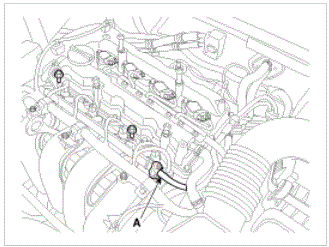

Fig 1: Fuel Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vapor hose (A).

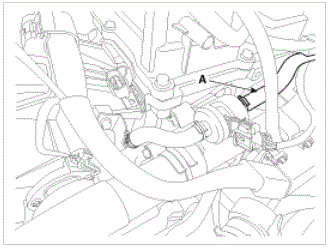

Fig 2: Vapor Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vapor hose quick-connector (A).

Fig 3: Vapor Hose Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tube protector (A).
Unfasten the fuel tube holders (B).

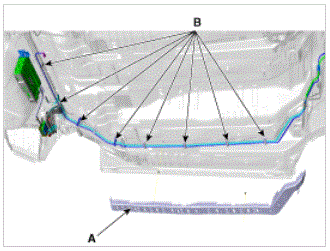

Fig 4: Fuel Tube Protector & Fuel Tube Holders
Courtesy of KIA MOTORS AMERICA, INC.
Make a gap for removing the fuel line by removing the front muffler hanger.
Remove the fuel line.
