DTC P0133: O2 Sensor Circuit Slow Response-Bank 1 Sensor 1: ETM

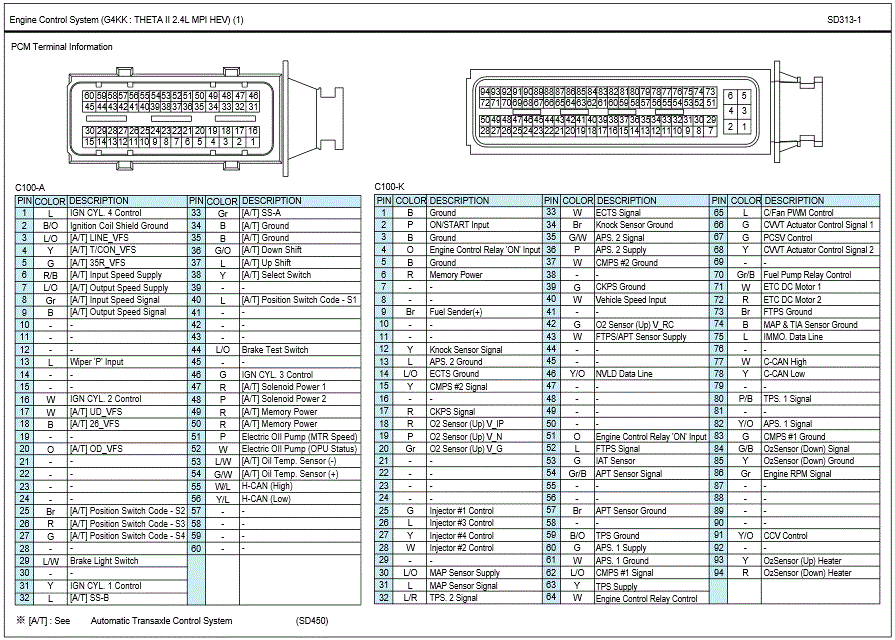

Fig 1: PCM Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

For wiring diagram information, refer to appropriate SYSTEM WIRING DIAGRAMS article.
