Engine Control System Diagnosis (1 Of 3) (HEV)
›
DTC P0140: O2 Sensor Circuit No Activity Detected-Bank 1 Sensor 2
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

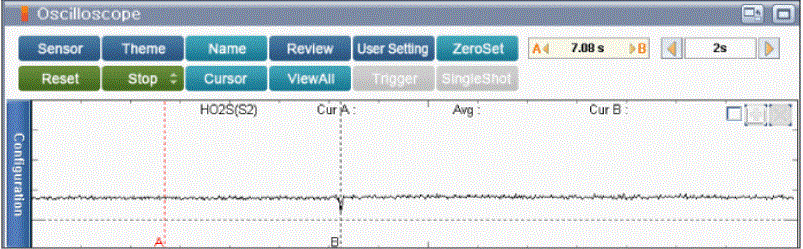

Fig 1: HO2S (S2) Voltage Waveform
Courtesy of KIA MOTORS AMERICA, INC.
A Cursor : 0.76V (Idling)
B Cursor : 0.25V (Accelerating)
Courtesy of KIA MOTORS AMERICA, INC.
