Ignition System - 2.0L - Optima
›
Ignition Coil
›
Schematic Diagrams
Schematic Diagrams

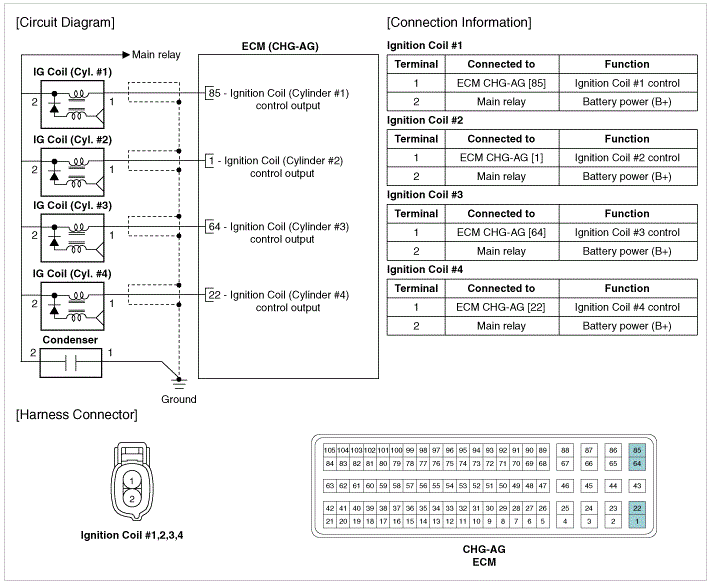

Fig 1: Ignition Coil Wiring Schematic
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
