Repair Procedures: Replacement

  1. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

  2. Remove the front wheel and tire (A) from front hub.

    Tightening torque:

    88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

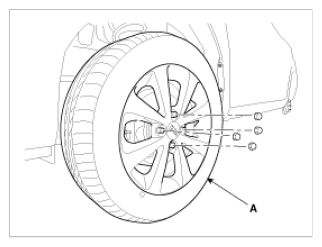

    Fig 1: Identifying Front Wheel And Tire
    G08321812Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
  3. Remove the brake caliper mounting bolts, and then hold the brake caliper assembly (B) with wire.

    Tightening torque:

    78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

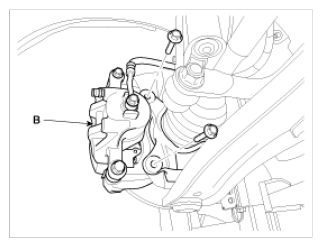

    Fig 2: Identifying Brake Caliper Assembly
    G08321813Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the brake hose mounting bracket (A) & wheel speed sensor (B) & bracket (C).

    Tightening torque (B, C):

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

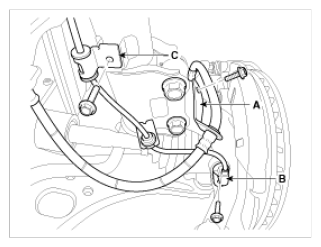

    Fig 3: Identifying Brake Hose Mounting Bracket, Wheel Speed Sensor And Bracket
    G08321814Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove driveshaft nut (A) from the front hub under applying the brake.

    Tightening torque:

    196.1 ~ 274.5 N.m (20.0 ~ 28.0 kgf.m, 144.6 ~ 202.5 lb-ft)

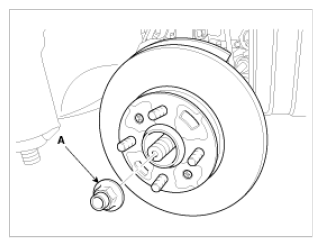

    Fig 4: Identifying Driveshaft Nut
    G08321815Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • The driveshaft lock nut should be replaced with new ones.
    • After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

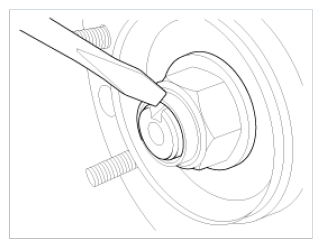

      Fig 5: Staking Lock Nut Using Chisel
      G08321816Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the tie rod end ball joint from the knuckle.
    1. Remove the split pin (A).
    2. Remove the castle nut (B).
    3. Use the SST (09568-34000).

      Tightening torque:

      23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 19.4 ~ 24.5 lb-ft)

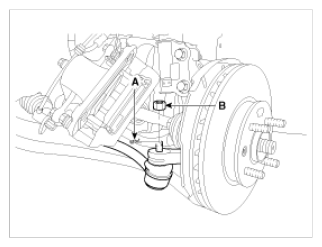

      Fig 6: Identifying Split Pin And Castle Nut
      G08321817Courtesy of KIA MOTORS AMERICA, INC.

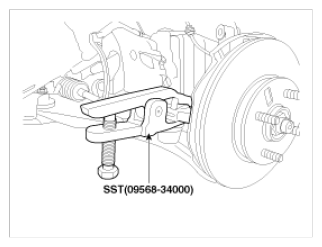

      Fig 7: Removing Tie Rod End Ball Joint From Knuckle
      G08321818Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the lower arm (A) from the knuckle.

    Tightening torque:

    196.1 ~ 274.5 N.m (6.0 ~ 7.2 kgf.m, 144.6 ~ 202.5 lb-ft)

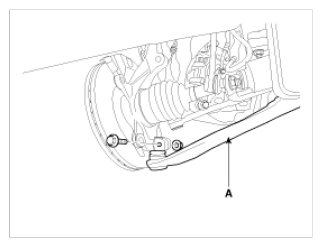

    Fig 8: Identifying Knuckle Lower Arm
    G08321819Courtesy of KIA MOTORS AMERICA, INC.
  8. Disconnect the driveshaft (A) from the front hub assembly.

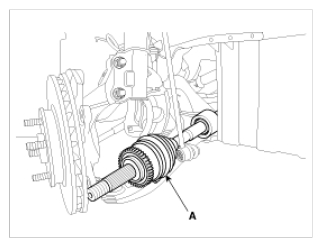

    Fig 9: Identifying Front Hub Assembly Driveshaft
    G08321820Courtesy of KIA MOTORS AMERICA, INC.
  9. Loosen the strut mounting bolts and then remove the knuckle assembly (A).

    Tightening torque:

    137.3 ~ 156.9 N.m (14.0 ~ 16.0 kgf.m, 101.3 ~ 115.7 lb-ft)

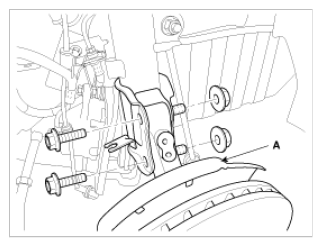

    Fig 10: Identifying Knuckle Assembly
    G08321821Courtesy of KIA MOTORS AMERICA, INC.
  10. Install in the reverse order of removal.
