Circuit Diagram
›
(A/T)
Circuit Diagram: (A/T)

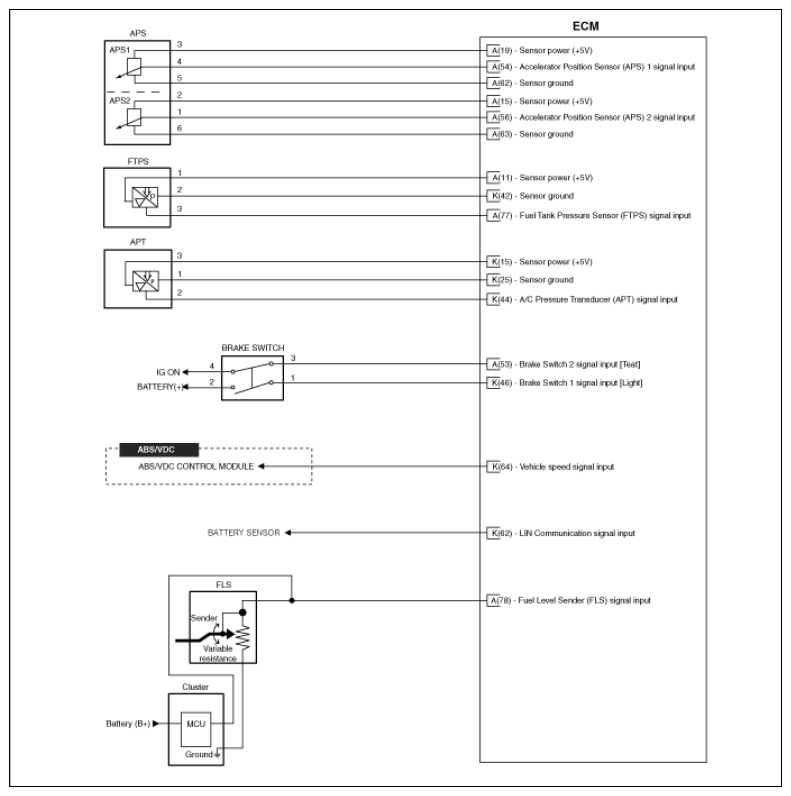

Fig 1: ECM - Circuit Diagram (A/T, 1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

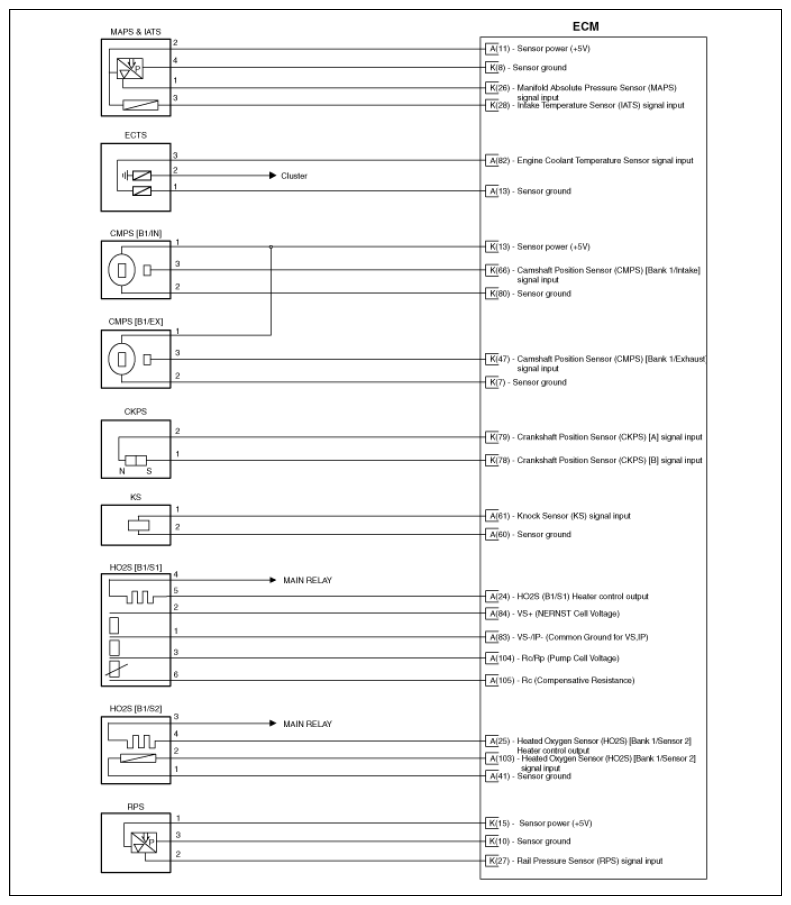

Fig 2: ECM - Circuit Diagram (A/T, 2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

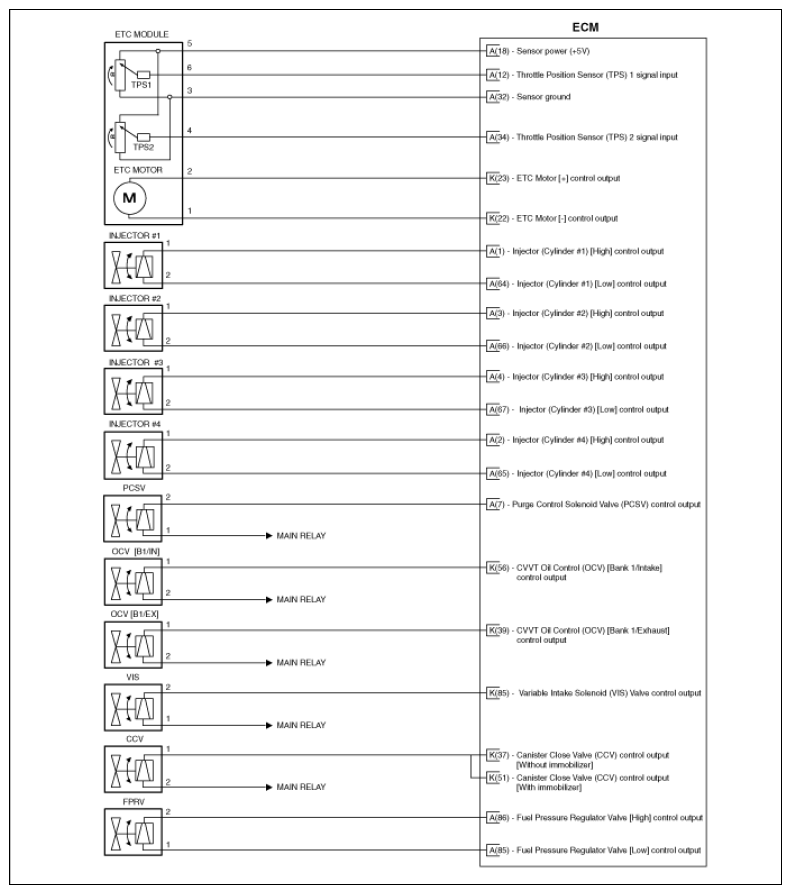

Fig 3: ECM - Circuit Diagram (A/T, 3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

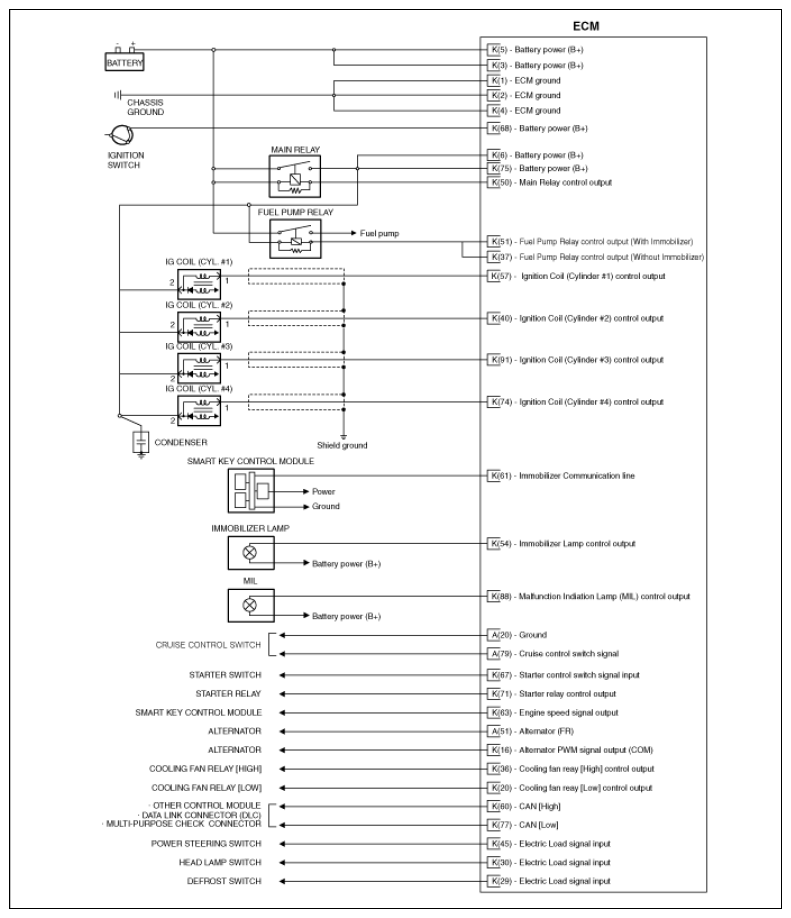

Fig 4: ECM - Circuit Diagram (A/T, 4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
