Home › Kia › 2015 › Rio EX, 4D Hatchback › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Engine Coolant Temperature Sensor (ECTS) › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A).

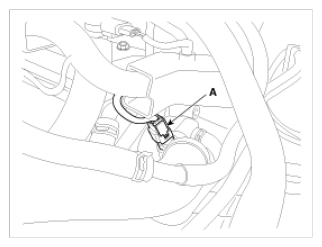

    Fig 1: Identifying Engine Coolant Temperature Sensor Connector
    G08321394Courtesy of KIA MOTORS AMERICA, INC.
  3. Supplement the engine coolant (Refer to "COOLING SYSTEM " in EM group).
