Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group).

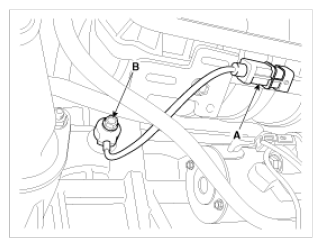

- Disconnect the injector connector (A).
- Remove the installation bolt (B), and then remove the sensor from the cylinder block.
