Integrated Memory System (IMS)
›
IMS Control Switch
›
Components and Components Location
›
Components
Components and Components Location: Components

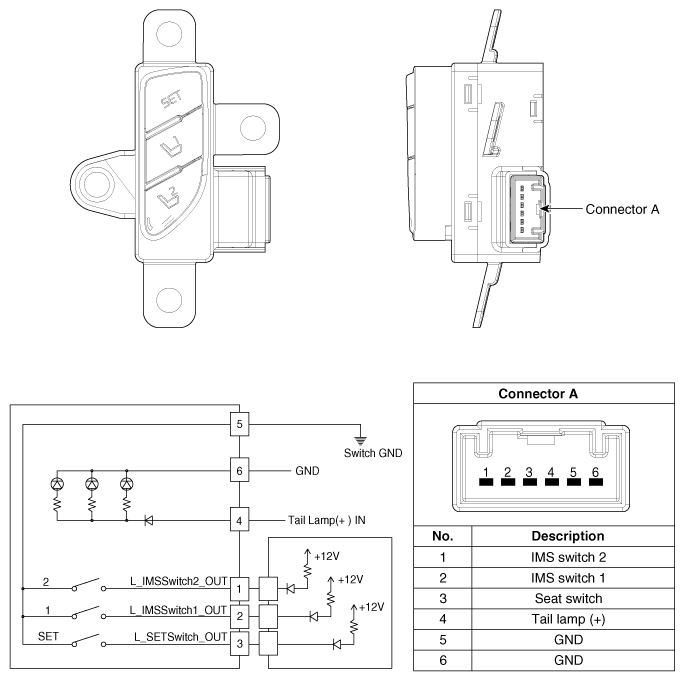

Fig 1: IMS Control Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
