FOB Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "FOB KEY STATUS INFO".

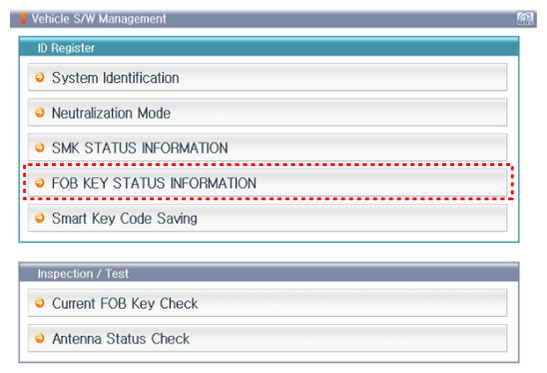

Fig 1: Screen Display - Vehicle S/W Management (Fob Key Status Information)

Courtesy of KIA MOTORS AMERICA, INC.

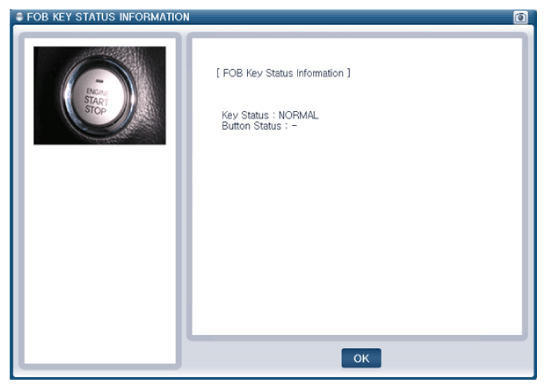

Fig 2: Screen Display - Fob Key Status Information

Courtesy of KIA MOTORS AMERICA, INC.
