Smart Tailgate System
›
Description And Operation
›
Operating Principle
›
Calibration Mode
Calibration Mode

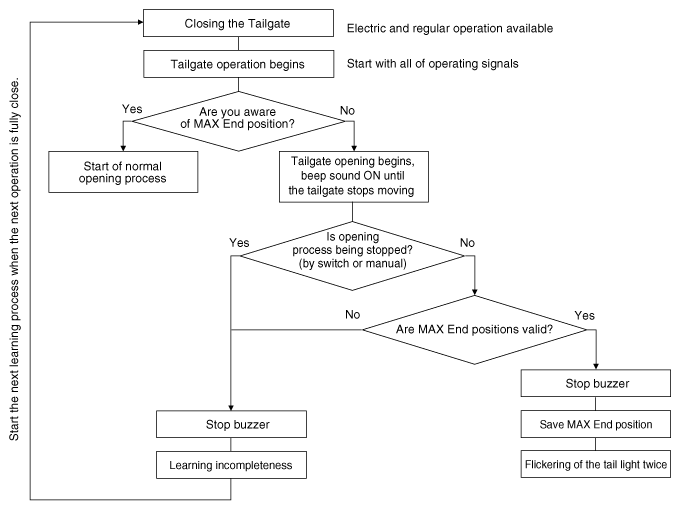

Fig 1: Tailgate Troubleshooting Flow Chart (Calibration Mode)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
