Smart Tailgate System
›
Smart Tailgate Unit
›
Components And Components Location
›
Components
Components And Components Location: Components

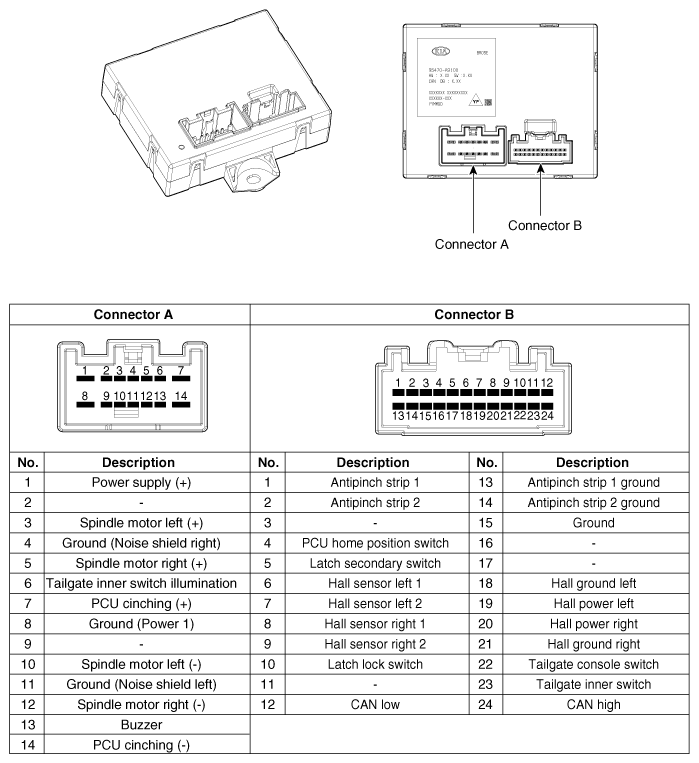

Fig 1: Smart Tailgate Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
