Components And Components Location: Components

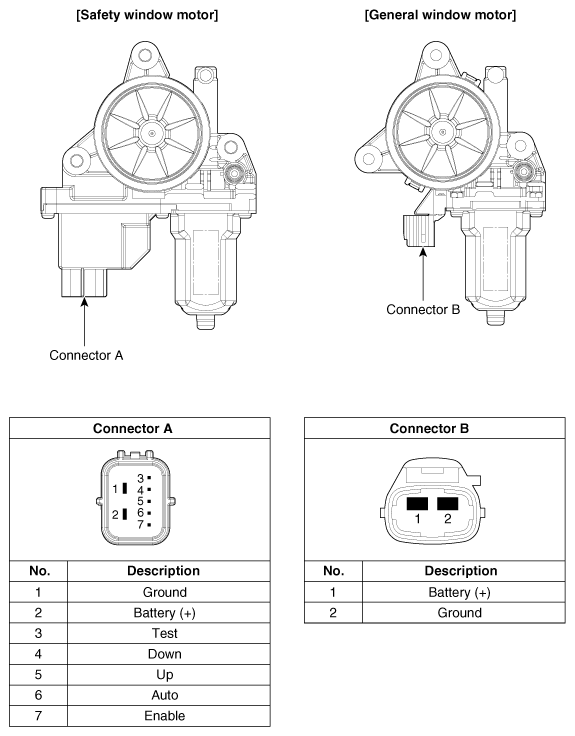

Fig 1: Power Window Motor Connector Terminals
G10651489Courtesy of KIA MOTORS AMERICA, INC.
