Components And Components Location
›
Components
›
Rear Power Window Switch
Rear Power Window Switch

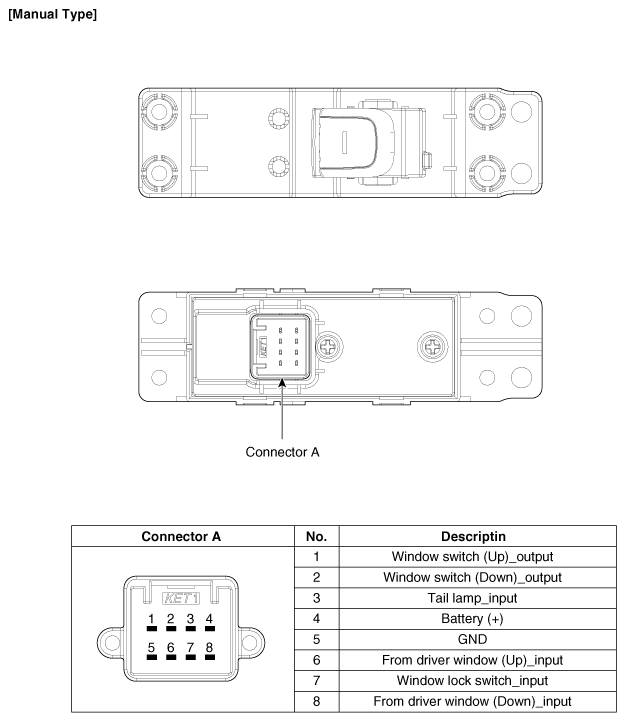

Fig 1: Rear Power Window Switch Connector Terminals - Manual Type
Courtesy of KIA MOTORS AMERICA, INC.

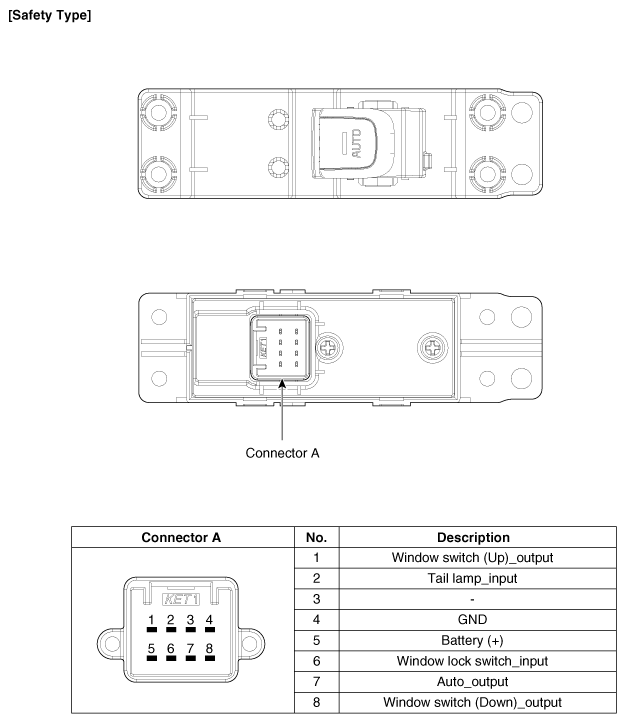

Fig 2: Rear Power Window Switch Connector Terminals - Safety Type
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
