Driver Power Window Switch

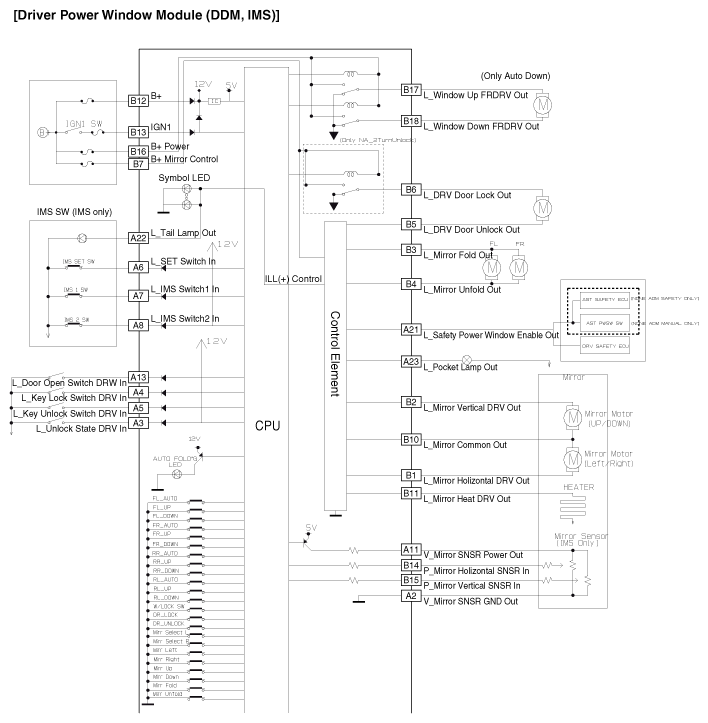

Fig 1: Driver Power Window Switch Circuit Diagram (1 Of 2)
G10651502Courtesy of KIA MOTORS AMERICA, INC.

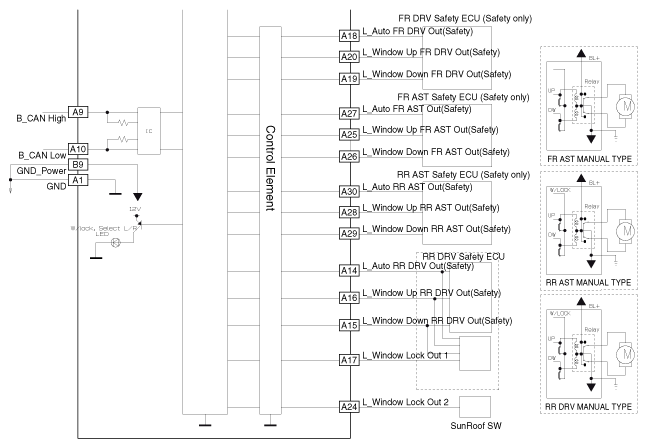

Fig 2: Driver Power Window Switch Circuit Diagram (2 Of 2)
G10651503Courtesy of KIA MOTORS AMERICA, INC.
