Components And Components Location: Components

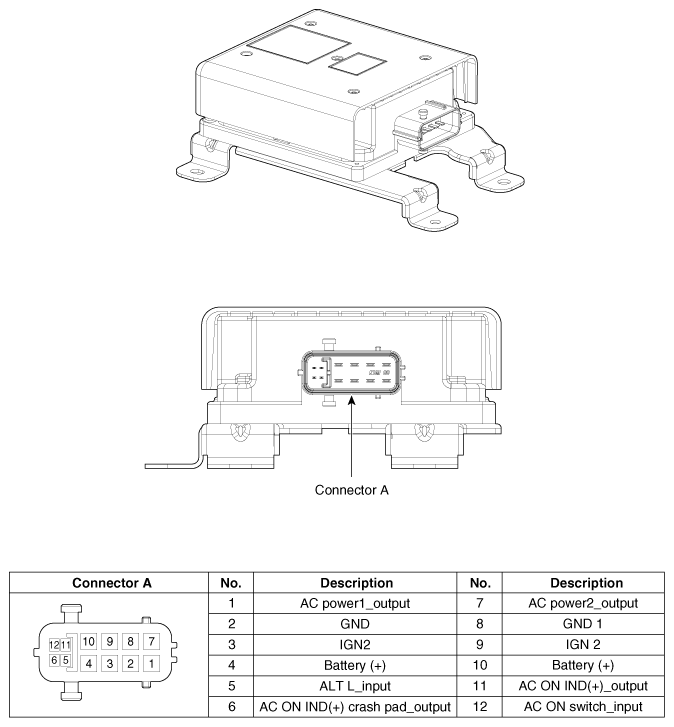

Fig 1: AC Inverter Unit Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
